Category : Integrated Circuits (ICs) Logic Gates and Inverters
Product Status : Active
Number of Inputs : 3
Mounting Type : Surface Mount
Package : Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Series : 74LVC
Input Logic Level - High : 1.7V ~ 2V
Logic Type : NAND Gate
Current - Quiescent (Max) : 40 µA
Supplier Device Package : SOT-363
Input Logic Level - Low : 0.7V ~ 0.8V
Mfr : Diodes Incorporated
Voltage - Supply : 1.65V ~ 5.5V
Max Propagation Delay @ V, Max CL : 3.6ns @ 5V, 50pF
Current - Output High, Low : 32mA, 32mA
Package / Case : 6-TSSOP, SC-88, SOT-363
Operating Temperature : -40°C ~ 125°C
Number of Circuits : 1
Base Product Number : 74LVC1G10
Features : -
Description : IC GATE NAND 1CH 3-INP SOT363
![]() |

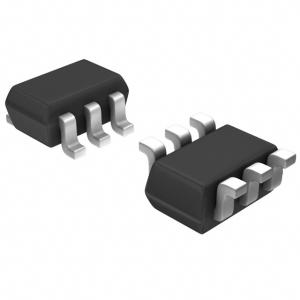

74LVC1G10DW-7 Images |
